Darimo T1 Loop Seatpost

Sale by Order
€299.00
Tax included

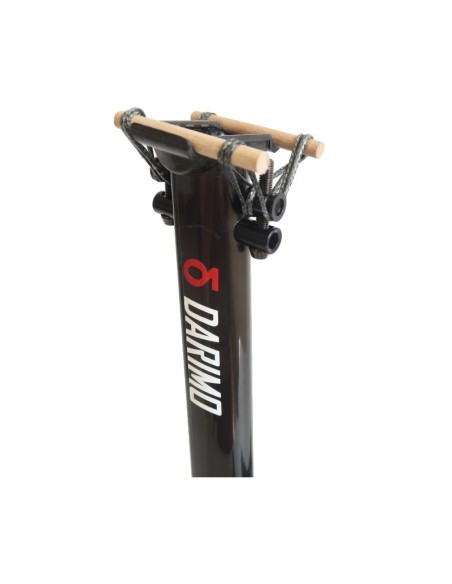

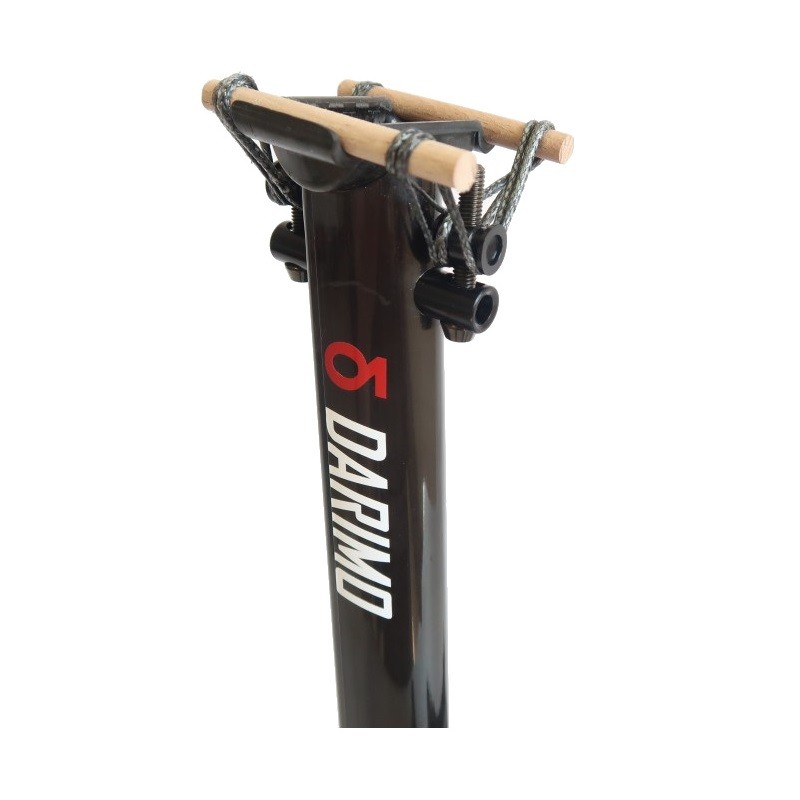

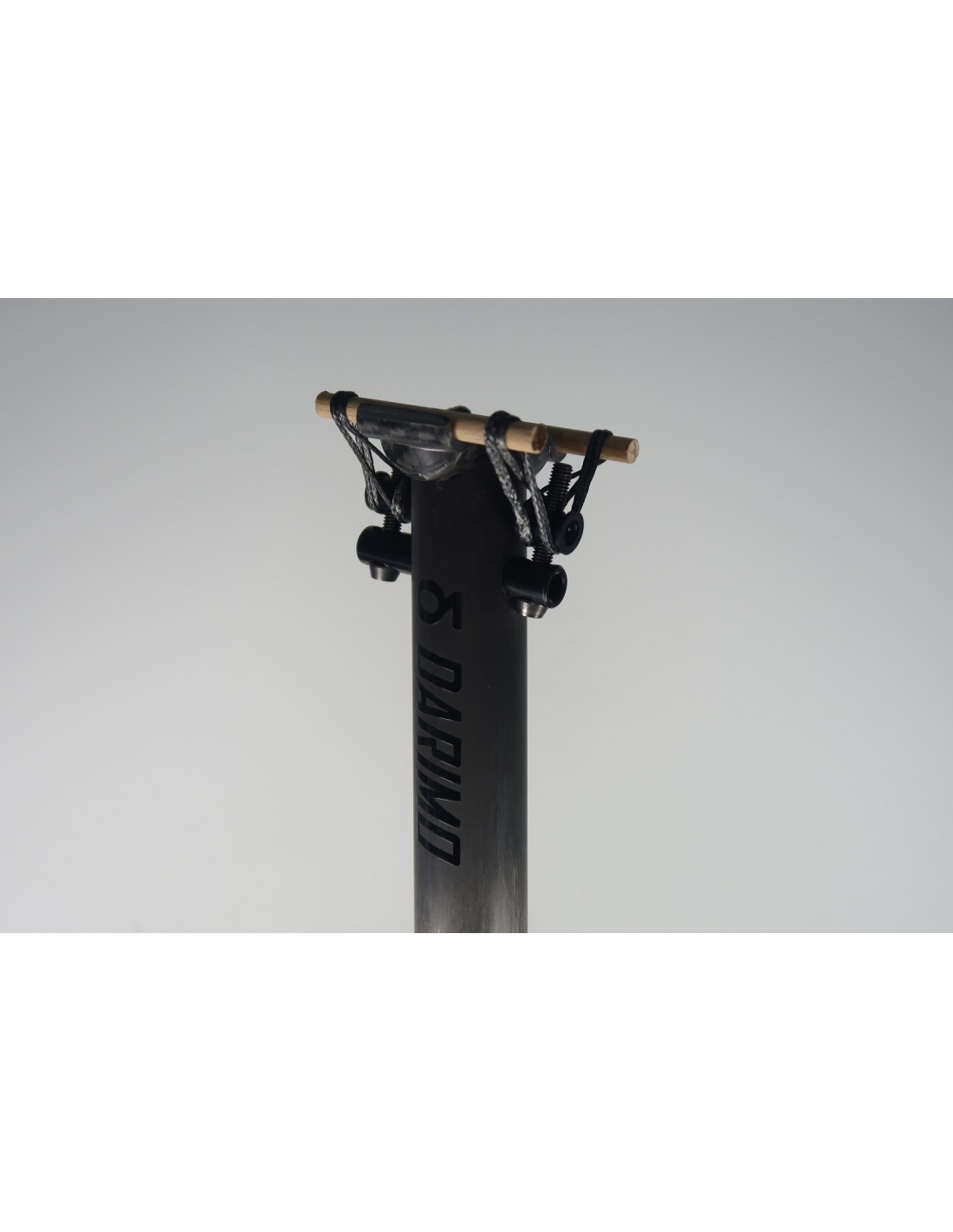

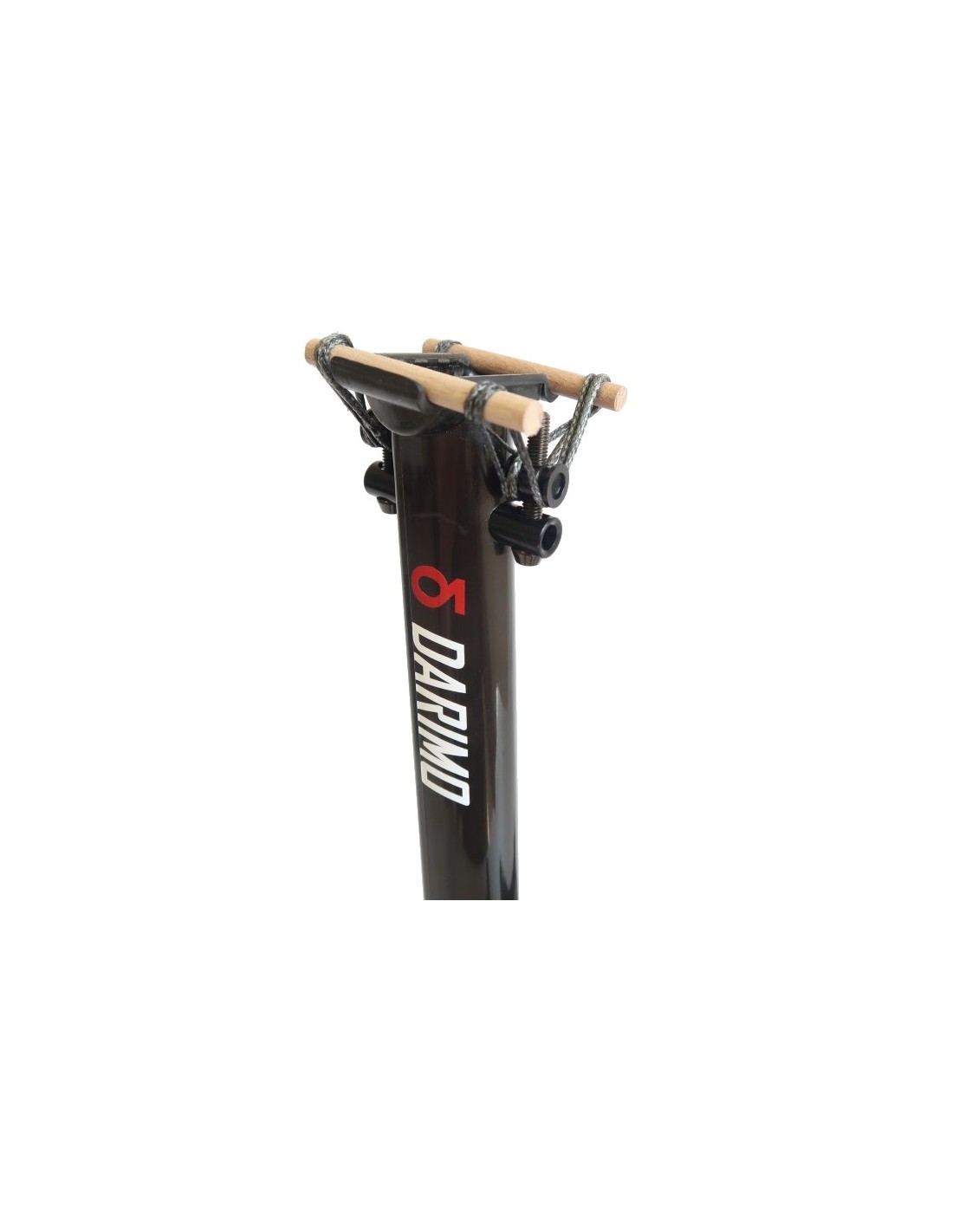

90 g at 31.6 × 400 mm. A round carbon fibre seatpost with an asymmetric layup calculated with finite element analysis, validated by destructive testing and hand-laid in our workshop in Llíria (Valencia, Spain). Saddle clamp with Dyneema® loops, compatible with any rail, including 7×9 mm carbon rails. Six diameters, from 250 mm to over 420 mm or custom, and a reinforced version at no extra cost.

Diameter
Length
Finish
Reinforced

  • 250 char. max
  • optional 250 char. max

Description

An asymmetric layup, layer by layer

A seatpost doesn't work the same way on every side: the front and the back carry very different loads. That's why its layup is fully asymmetric, with a different number and orientation of layers in each zone, calculated with finite element analysis and validated by destructive testing. We combine bidirectional and unidirectional fabrics and lay every layer by hand to achieve the best weight-to-strength ratio.

Dyneema® Loop clamp

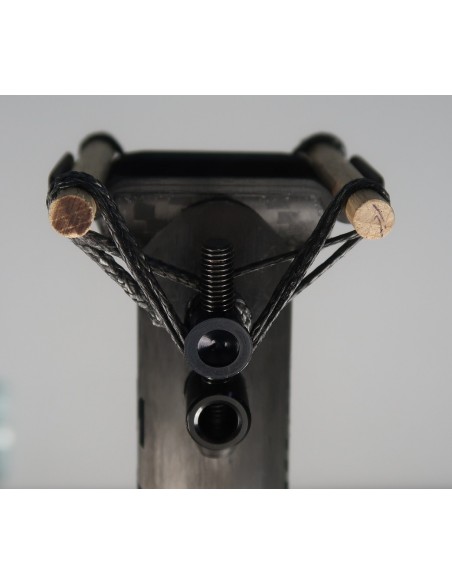

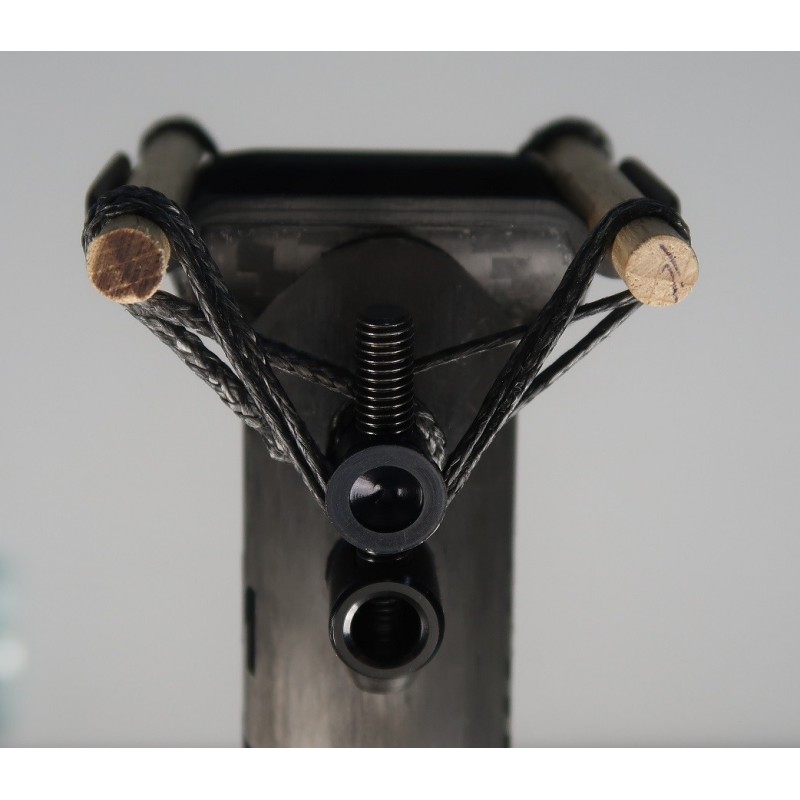

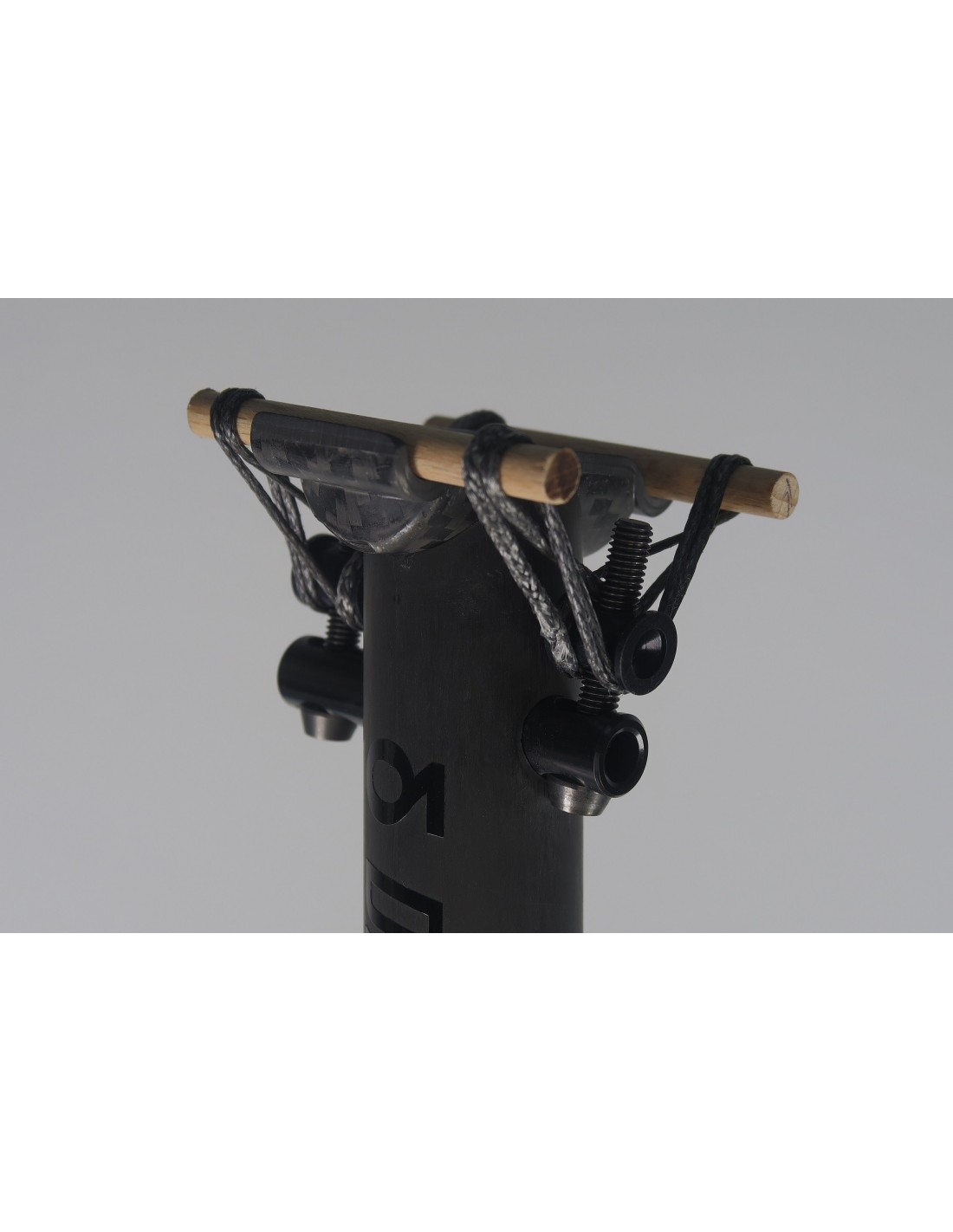

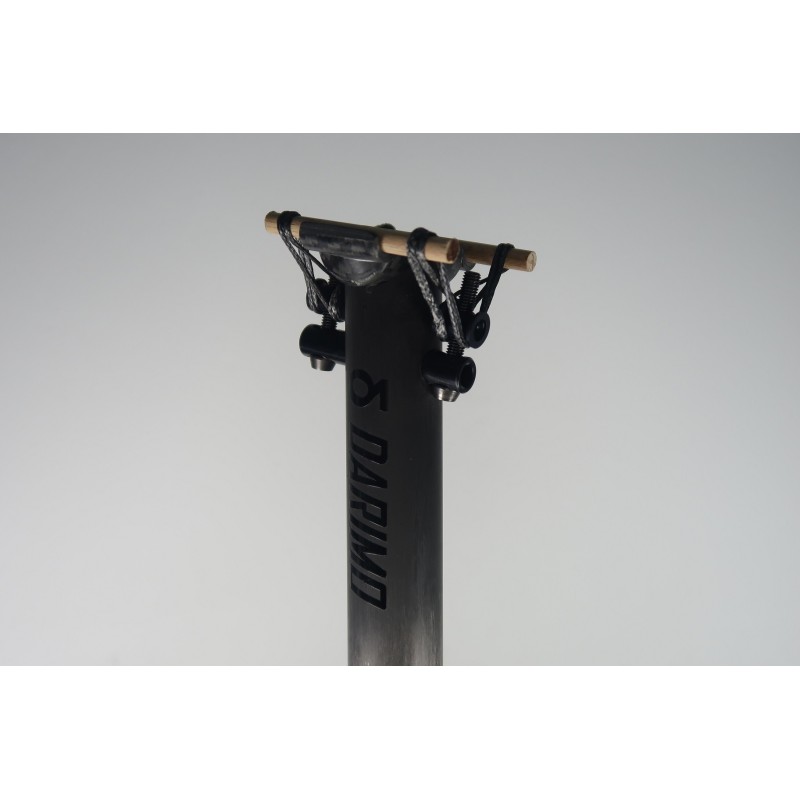

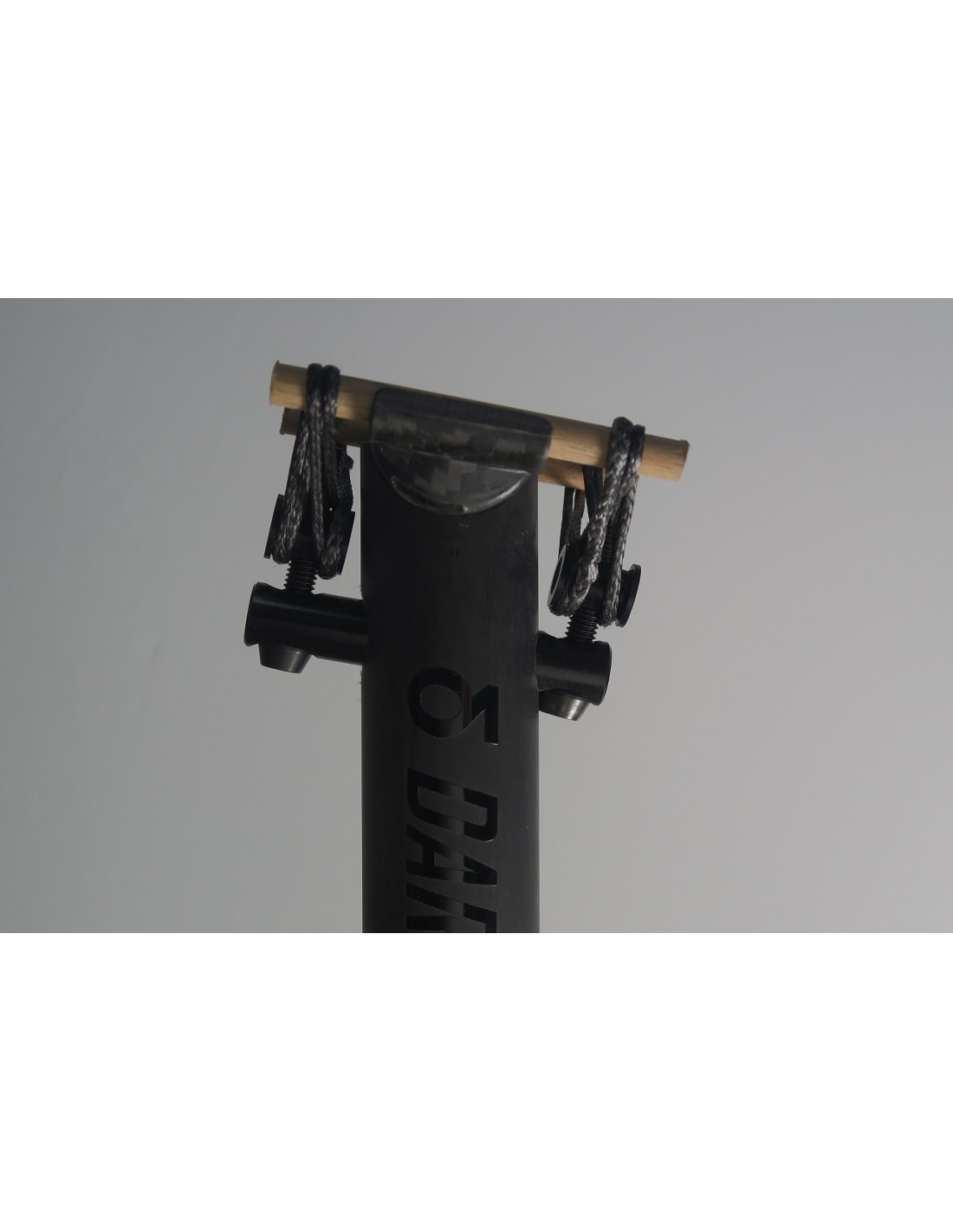

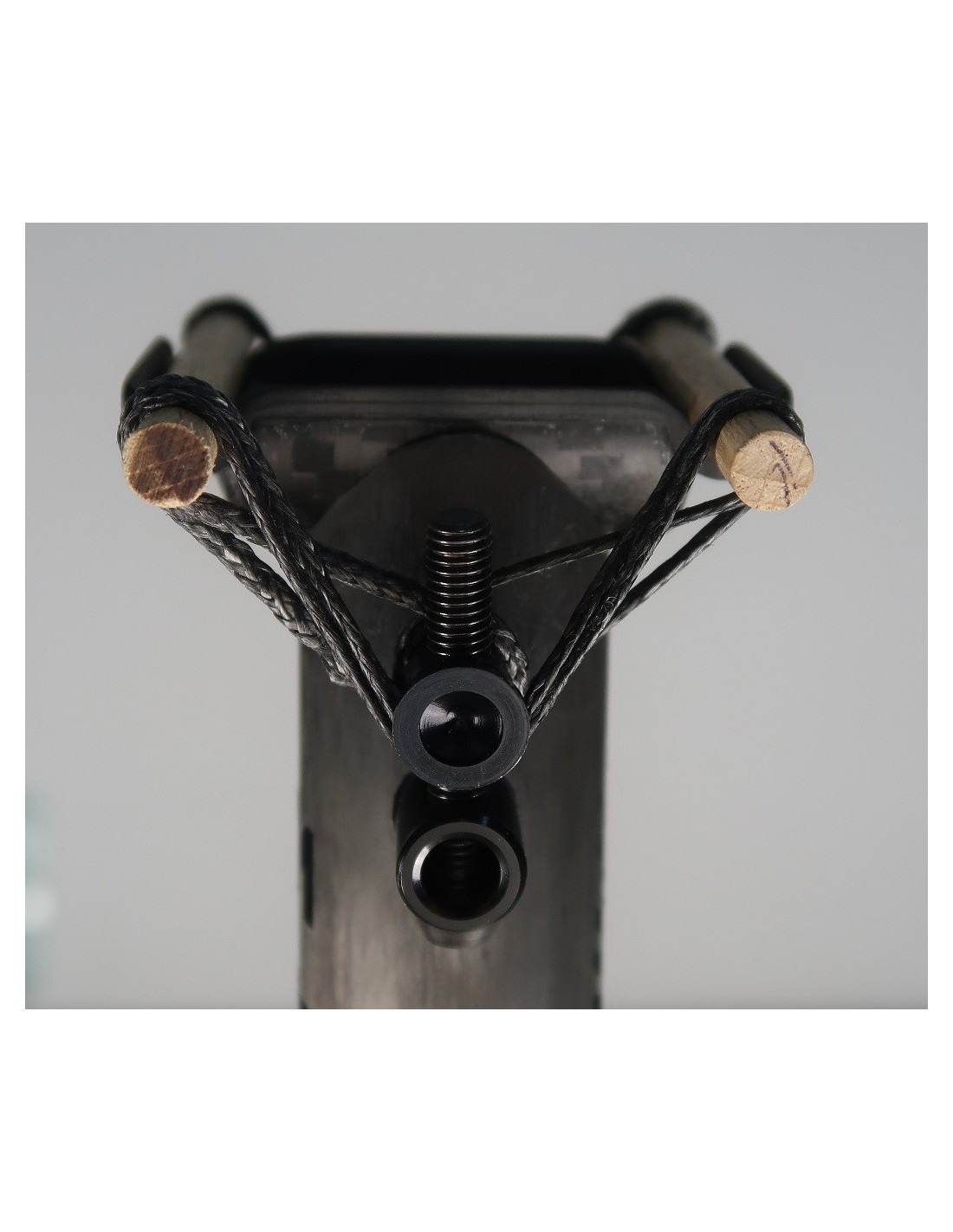

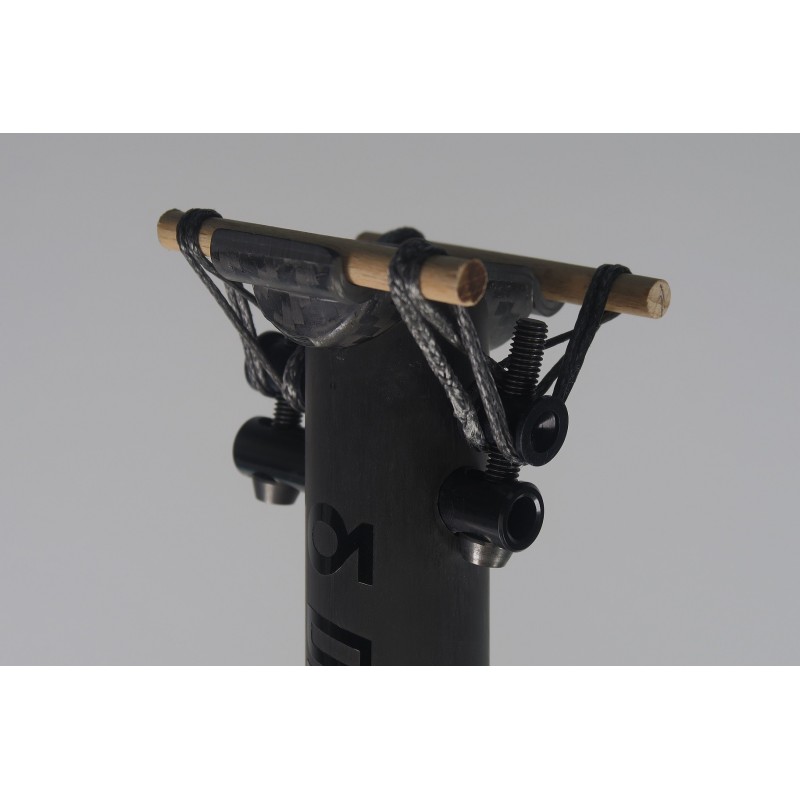

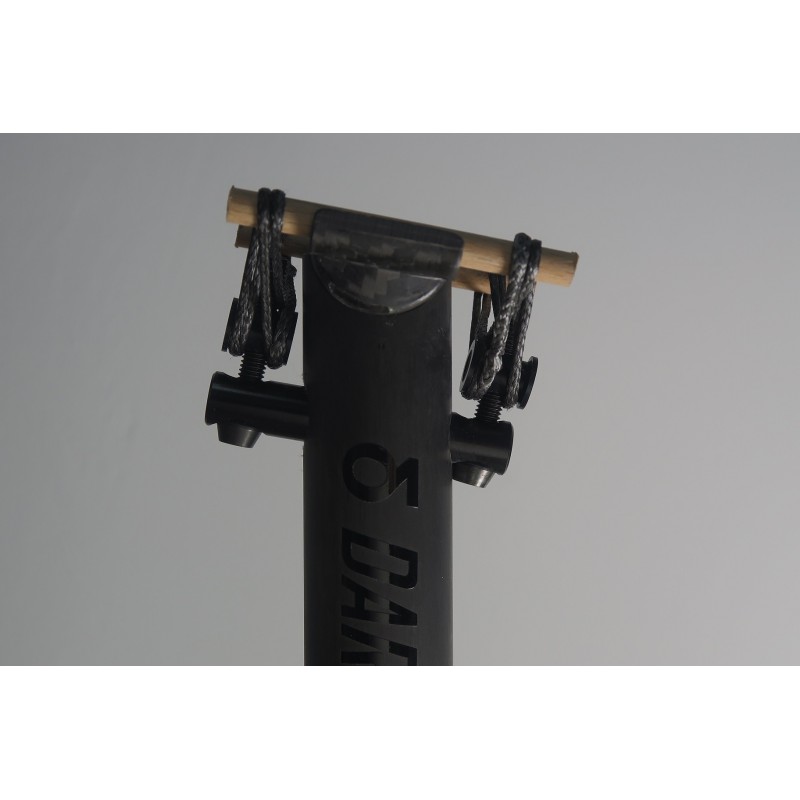

The saddle is clamped with two Dyneema® loops, a very light and strong system. The parts have a wide contact surface and no sharp edges, so it suits any type of rail, including 7×9 mm carbon rails.

Traditional carbon-triangle clamp

If you prefer, you can also order the seatpost with the traditional carbon-triangle clamp at no extra cost. Just state it in the order comment.

Safety

Exceeds ISO 4210 testing.

  • Standard version: riders up to 90 kg.
  • Reinforced version: for riders over 90 kg, only around 15 g heavier at 400 mm. No extra charge: at Darimo, safety is never an upgrade.

Use

Road, cyclocross and MTB. Replace your original round seatpost and save weight where it matters: the seatpost and saddle sit far from the ground, and lighter parts there reduce the pendulum effect when you ride out of the saddle.

Specifications

  • Diameters: 25.4 · 27.2 · 30.9 · 31.6 · 31.8 · 34.9 mm
  • Lengths: 250, 300, 350 and 400 mm, over 420 mm or Custom

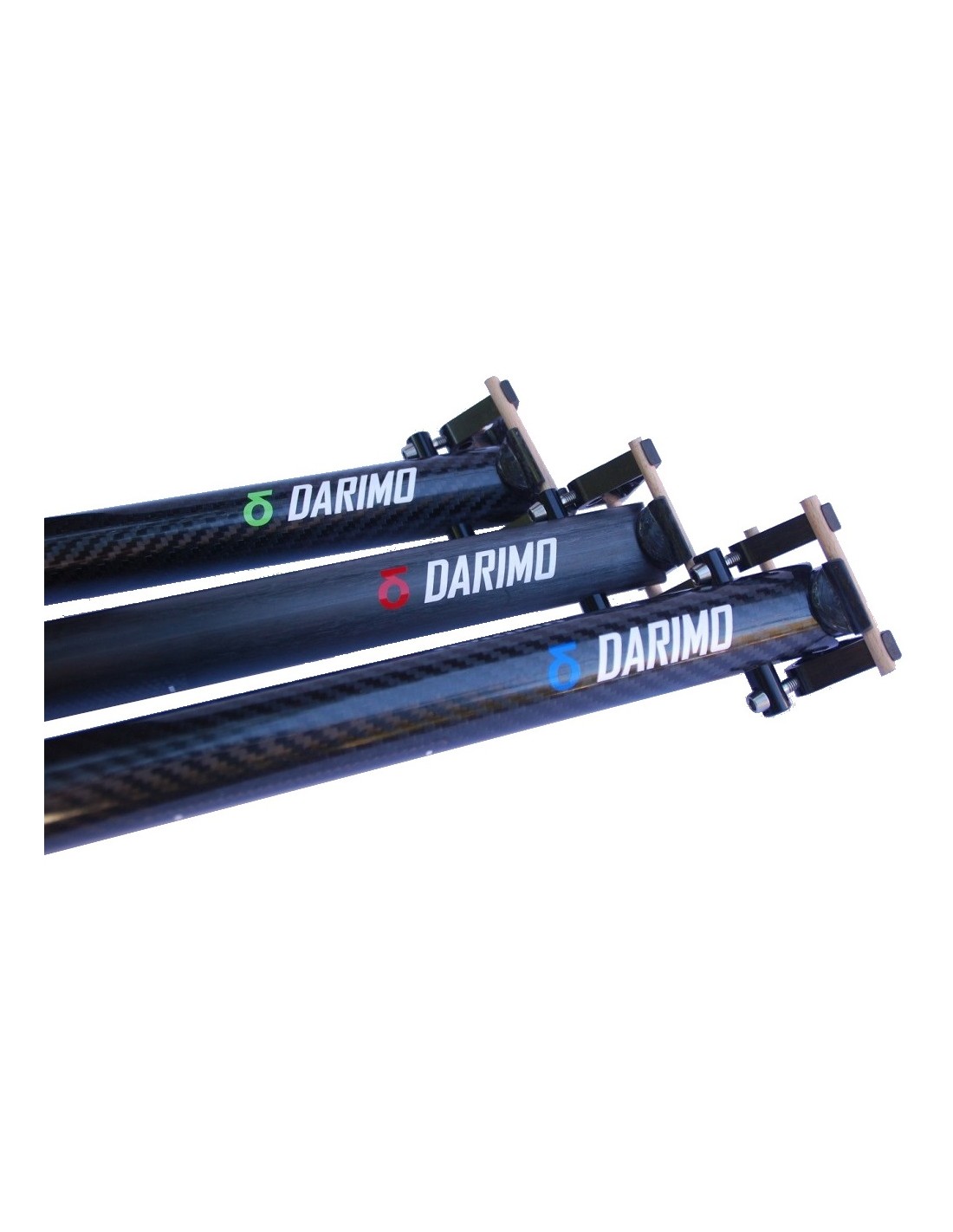

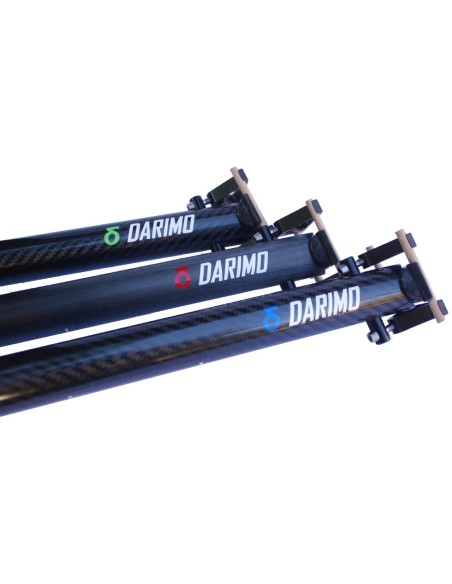

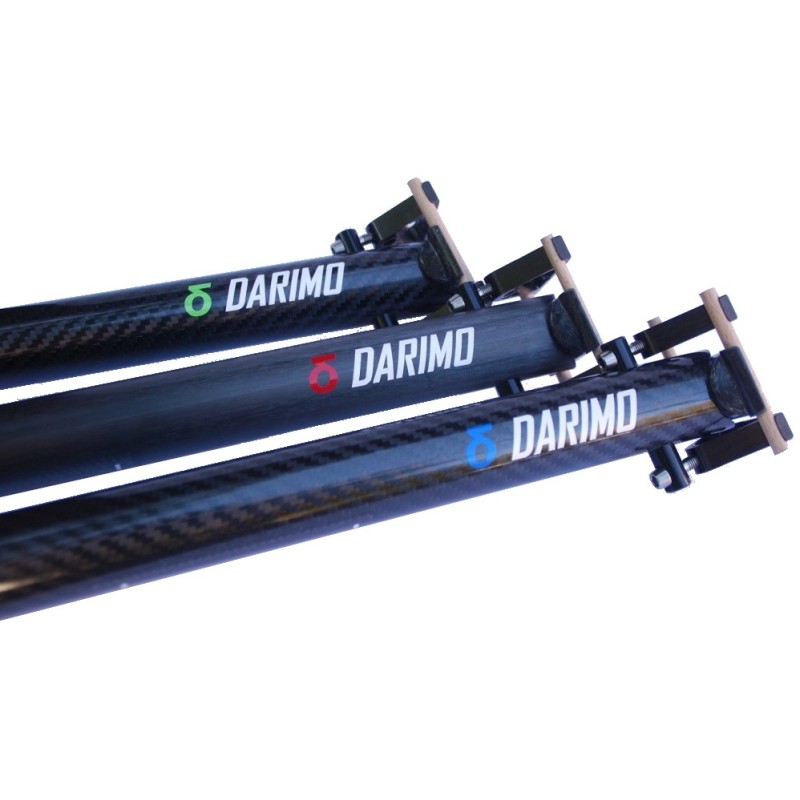

  • Finishes: UD matte, UD gloss, 3K matte, 3K gloss, Forged matte or Forged gloss (UD adds around 4 g and Forged around 10 g)
  • Weight: 90 g at 31.6 × 400 mm, standard version
  • Lead time: 3 weeks
  • Materials: uni- and bidirectional carbon fibre tube and cradle · anodised 7075-T6 aluminium pin and nuts · Ti Gr5 M5 bolts · Dyneema® loops

Choosing the length

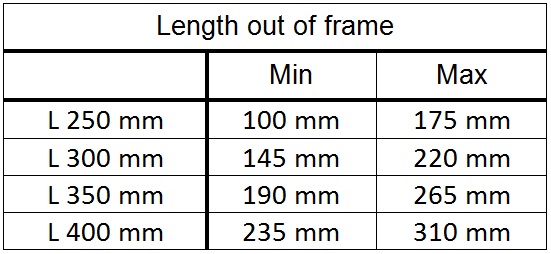

Measure the length of seatpost that sits out of the frame, up to the centre of the rails, and pick the size from the table. If you're between two sizes, consider whether other riders will use the same bike.

Darimo T1 Loop seatpost length chart

Assembly

Assembly instructions and torque values: download the PDF.

Watch the Loop clamp assembly video:

Watch assembly video

Need something special?

If you need a different length (for example over 500 mm), an exact size or a seatpost optimised to save even more weight (at least 5 g lighter in a made-to-measure post), we'll make it for you. Every seatpost is handmade and we adapt to your needs: write to info@darimo.eu. If you choose the Custom length, state your size in the order comment.

Decals

Please state your decal colour in the order comment. If none is specified, gloss finishes are shipped with white-white decals and matte finishes with black-black decals.
